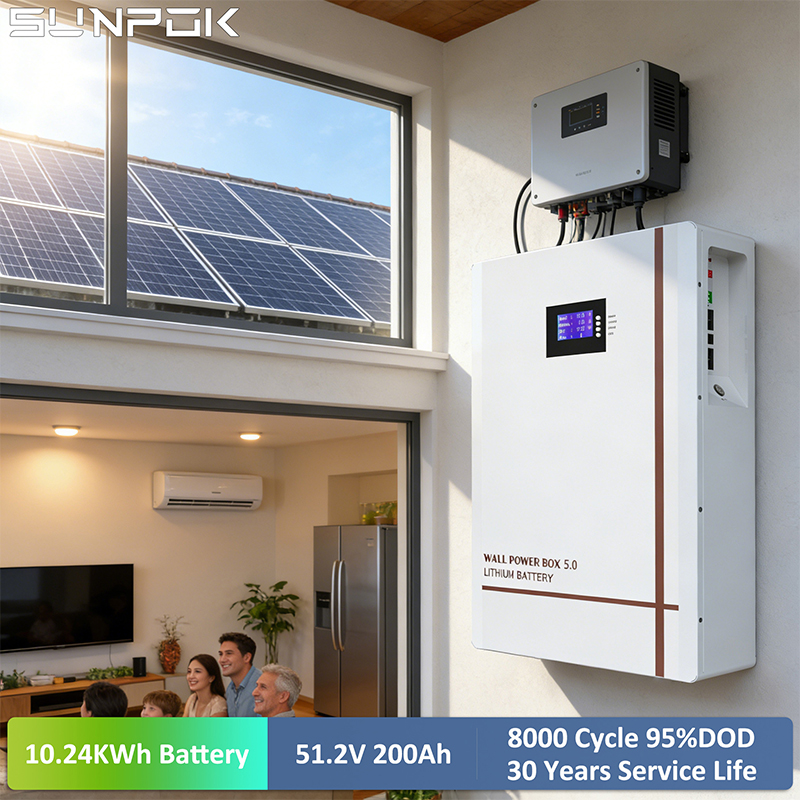

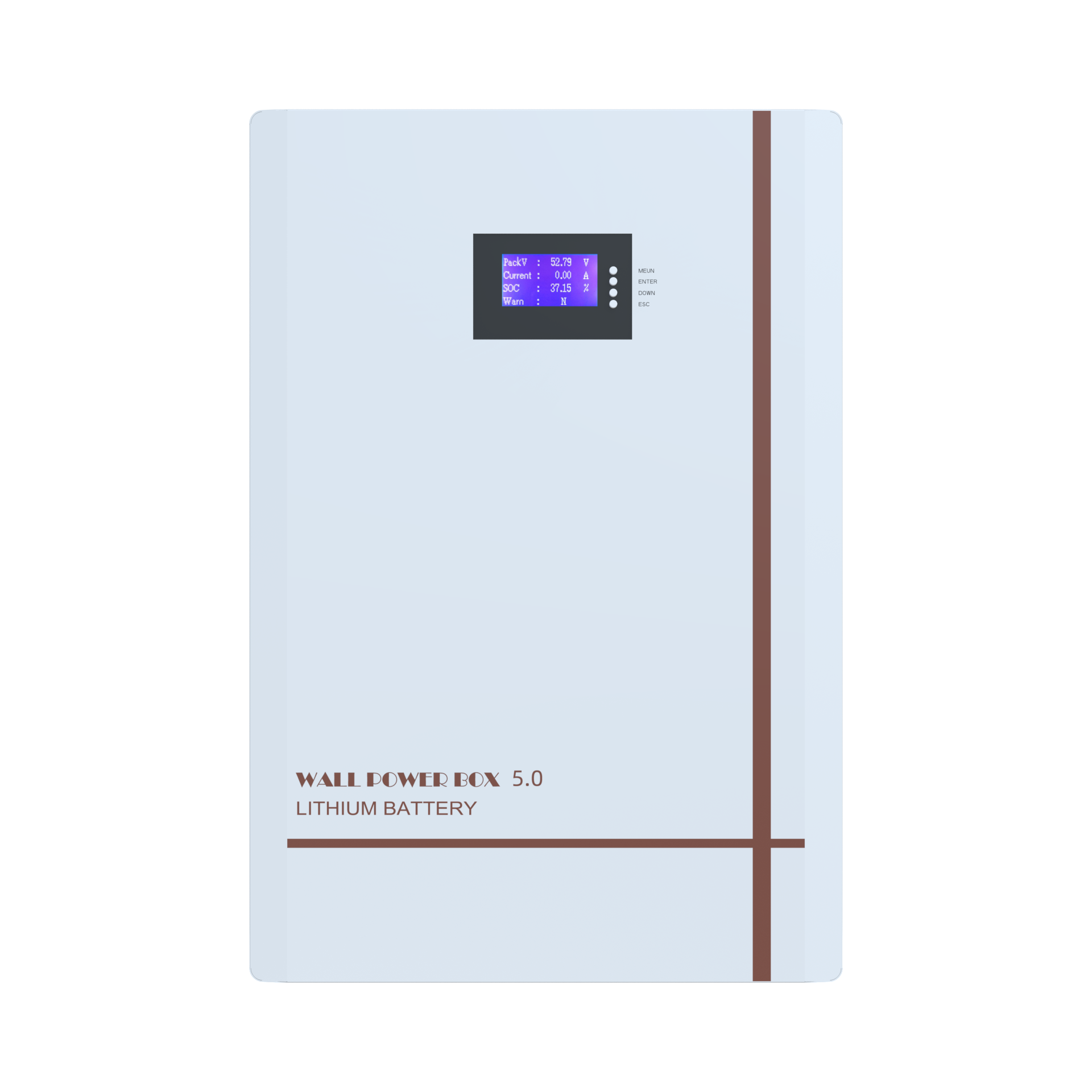

51.2V 200Ah 10.24kWh Wall Mounted Solar Energy Storage Battery
Product Type: Wall-Mounted LiFePO4 Energy Storage Battery
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Rated Energy: 10kWh
Product Overview
◼︎ The SUNPOK 51.2V 200Ah 10.24kWh Wall-Mounted LiFePO4 Solar Energy Storage Battery is a high-capacity, space-saving, ultra-safe long-life energy storage solution built for large residential solar systems, whole-home power backup, and medium light commercial power storage.
◼︎ Equipped with premium A-grade LiFePO4 cells, integrated intelligent BMS and built-in 200A DC circuit breaker, this wall-mounted battery delivers stable high-power output, all-round multi-layer safety protection and consistent reliable performance to meet large-capacity daily household and commercial energy storage demands.
With a rated energy of 10.24kWh, ultra-long cycle life exceeding 8000 cycles at 95% DOD, and support for up to 15 units parallel expansion, this slim wall-mounted model perfectly matches users with large power consumption demands but limited floor space.
◼︎ Its thin wall-mounted cabinet design saves valuable indoor space, easily installed in living rooms, garages, utility rooms and commercial equipment rooms. The front HD LCD screen and intuitive physical operation buttons support real-time battery data monitoring, greatly simplifying daily operation and maintenance.
Core Technical Specifications
| Parameter | Specification |
| Brand | SUNPOK |
| Product Type | Wall-Mounted LiFePO4 Solar Energy Storage Battery |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Rated Energy | 10.24kWh |
| Battery Cell Type | A Grade LiFePO4 Cell |
| Cycle Life | More than 8000 cycles |
| Maximum Parallel Connection | Up to 15 units |
| DC Circuit Breaker | 200A DC Circuit Breaker |
| BMS | Built-in Intelligent BMS |
| Inverter Compatibility | Compatible with all inverter brands |
| Display | LCD display with SOC and status indicators |
| Installation Style | Wall-mounted |
| Dimensions | 790mm × 497mm × 202mm |
Key Product Advantages
Application Scenarios
This 5.12kWh wall-mounted LiFePO4 battery fits a wide range of energy storage scenarios:

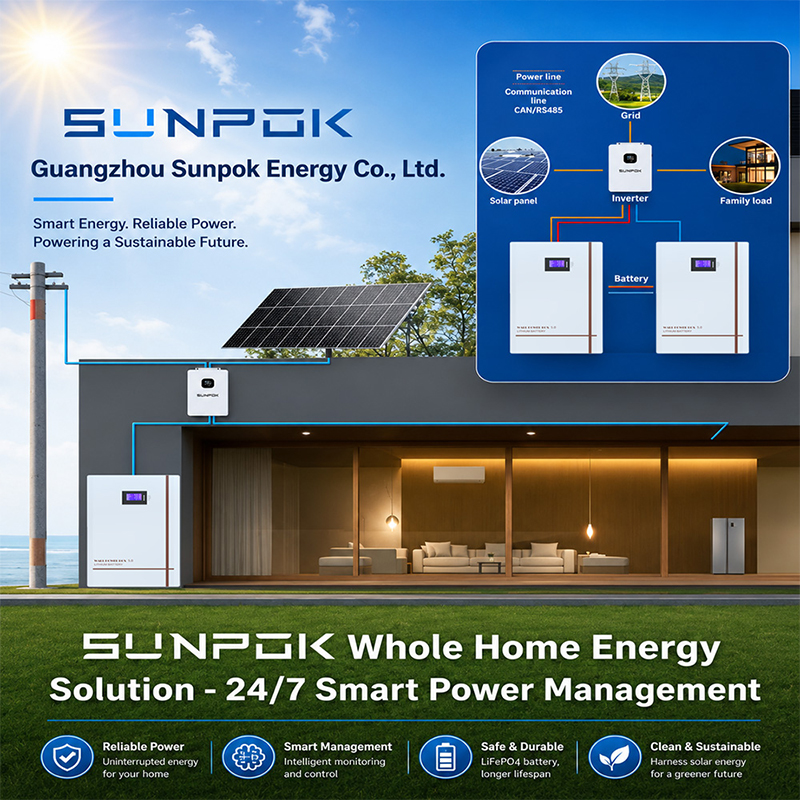

◼︎ Residential Solar Energy Storage: Store excess solar power and increase household solar self-consumption rate
◼︎ Home Backup Power: Keep essential appliances running during grid power outages
◼︎ Off-Grid Power Systems: Suitable for cabins, remote homes, farms and isolated locations without grid access
◼︎ Light Commercial Energy Storage: Applicable for small shops, home offices, workshops and small business backup systems
◼︎ Telecom and UPS Backup Power: Deliver stable power supply for communication equipment and emergency UPS devices
Why Choose us
Why Choose SUNPOK 10.24kWh Wall-Mounted Battery
The SUNPOK 51.2V 200Ah wall-mounted battery combines high safety, long service life, stable output and flexible expansion in a space-saving design. It is built for users who need a reliable solar battery with wide compatibility and easy operation in limited space.
Whether for home solar self-consumption, emergency backup or light commercial energy storage, this model delivers a balanced solution of performance, safety and cost-effectiveness.
